INPUT SPECIFICATIONS:
? INPUT Connectors:INPUT(1,2)
? INPUT Impedance:15ohm
? Source Impedance:600 ohm Lines
? Sensitivity:+4dB(1.23V)
? Nominal Level:+4dB(1.23V)
? Maximum Before Clipping:+21dB(11.2V)
? Connectors:XLR-3-31 Type
OUTPUT SPECIFICATIONS:

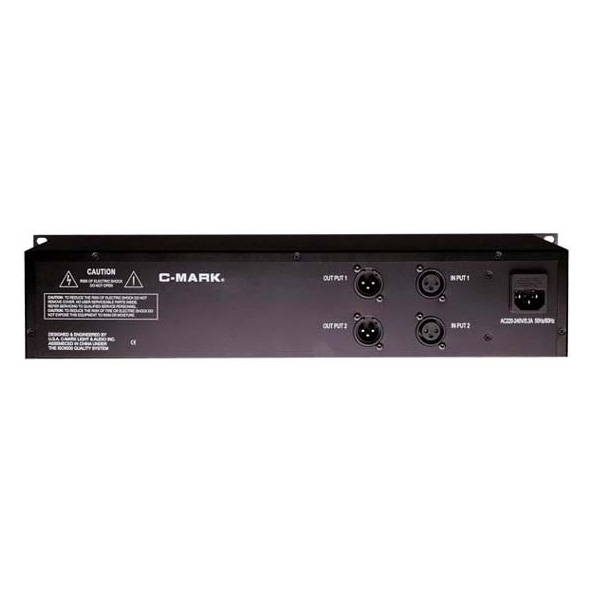

? OUTPUT Connectors:OUTPUT(1,2)
? OUTPUT Impedance:150ohm
? Load Impedance:600ohm Lines
? Nominal Level:+4dB(1.23V)
? Maximum Before Clipping:21dB(11.2V)
? Connectors:XLR-3-32 Type
? Frequency Response:20Hz-20KHz ± 0.5dB @ +4dB *600 ohm
? Total harmonic Distortion:Less than 0.05 (20Hz-20KHz@+4dB 600ohm)
? Hum & Noise:-90dB
? Maximum Voltage Gain:0dB, Input Level...Max.
? EQUALIZER CONTROLS Center Frequencies:31 band (1/3 octave)
? Variable Range:± 12dB
? HIGH PASS FILTER (Roll off Frequency):12dB/octave (50Hz at -3dB point)
? Power Consumption:20W
? Dimensions(HXLXD) :482x88x130mm
? Weight:2.75kg
